Chain Automatic Oiling Device
Timing Luber ET-P6
(Ultra-micro type)
Features
- You can expect longer operating life without trouble, since it does not touch the chain.
- Oiling is possible from all directions (vertical and horizontal).
- It can correspond to faster chain speed, since plural places can be oiled at once.
- There are no worries of oil contamination on the floor and surroundings.
- Management is easy, since the power source is electricity only.
- Transfer and maintenance is easy and installation space is not limited, since the device is a wall hanging type and built into the panel.

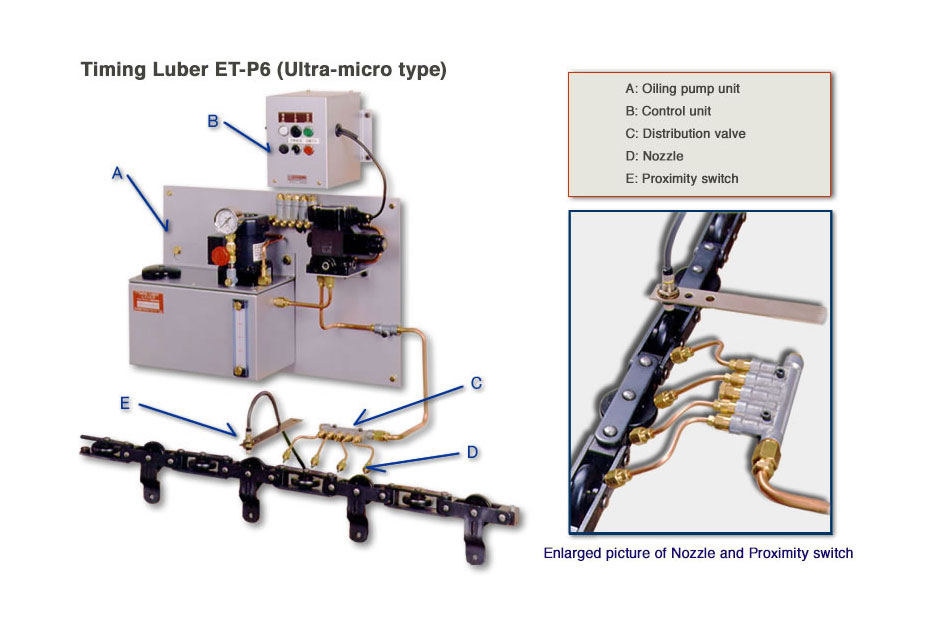

General Drawing
Lubrication Specification
| Lubrication Method | It detects chain link in operation, checks the timing, and sends a signal to the accumulator. Receiving the pressure from the accumulator, oil gushes from the distribution valve. Oil is supplied to the chain lubrication point through the nozzle. |
|---|---|
| Oiling Quantity | 0.03 or 0.06㎤ per place/time |
| Oiling Capacity | Up to 5 places/time. However, differences may occur according to total piping extension and installation environment condition, etc. |
| Kinematic Viscosity Range | 20-300㎟/s |
| Timing Tracking Capability | As a standard, transit time of the link is 0.3 seconds or more. However, if plural places can be oiled at once, it can correspond to the speed accordingly. |
| Piping Capacity |
Main pipe (Φ 8✕6) = up to 5m Branch pipe (Φ 4✕2) = up to 0.5m |
| Timing Detection Sensor | Proximity switch (optoelectronic switch, limit switch, etc. can also be selected according to installation environment) |
| Control (Control Unit) |
Oiling time exclusive type – Oiling time for all links is set in advance, and oiling will automatically stop after the predetermined set time elapses. Oiling time accumulation type (option) – Only oiling time is counter accumulated. |
